Traffic modelling files

Files formats

The traffic modelling uses the 4 following files / QGis layers :

• a “links” file, or multiline QGis layer
• a “zones” file, or point QGis layer
• a “Parkings” file, or point QGis layer
• some matrices files, “.csv” files or “.geojson” files

Here are the structure of these files :

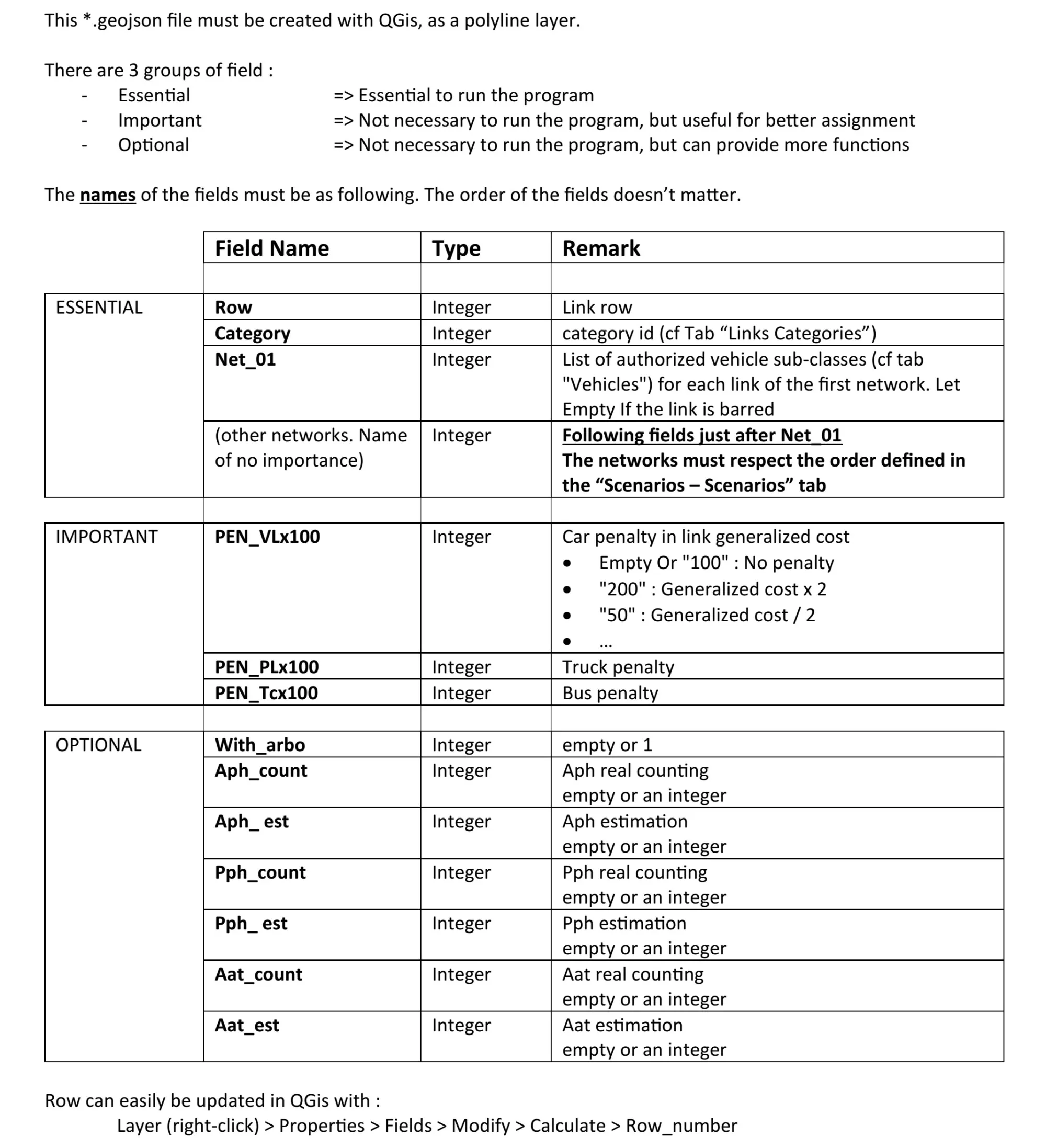

Links file (multiline QGis layer)

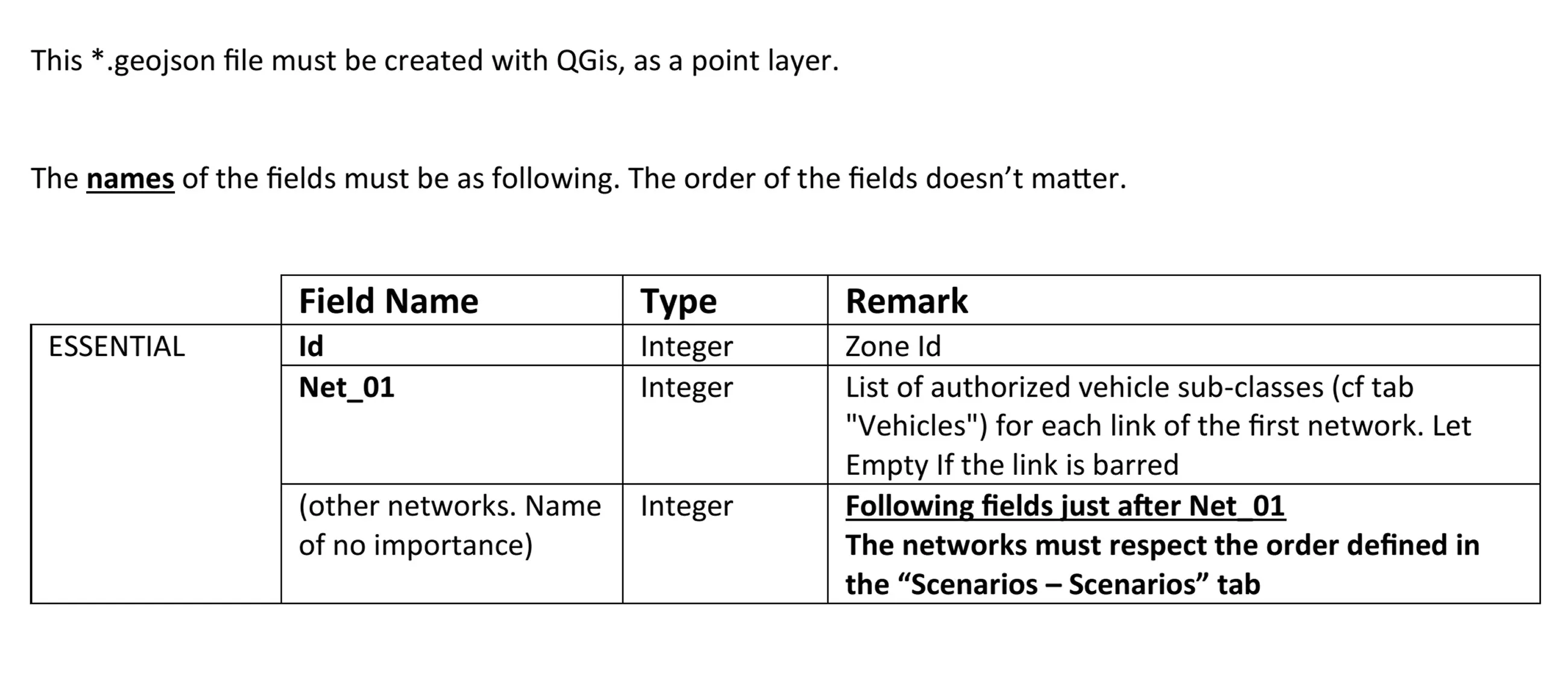

Zones file (point QGis layer)

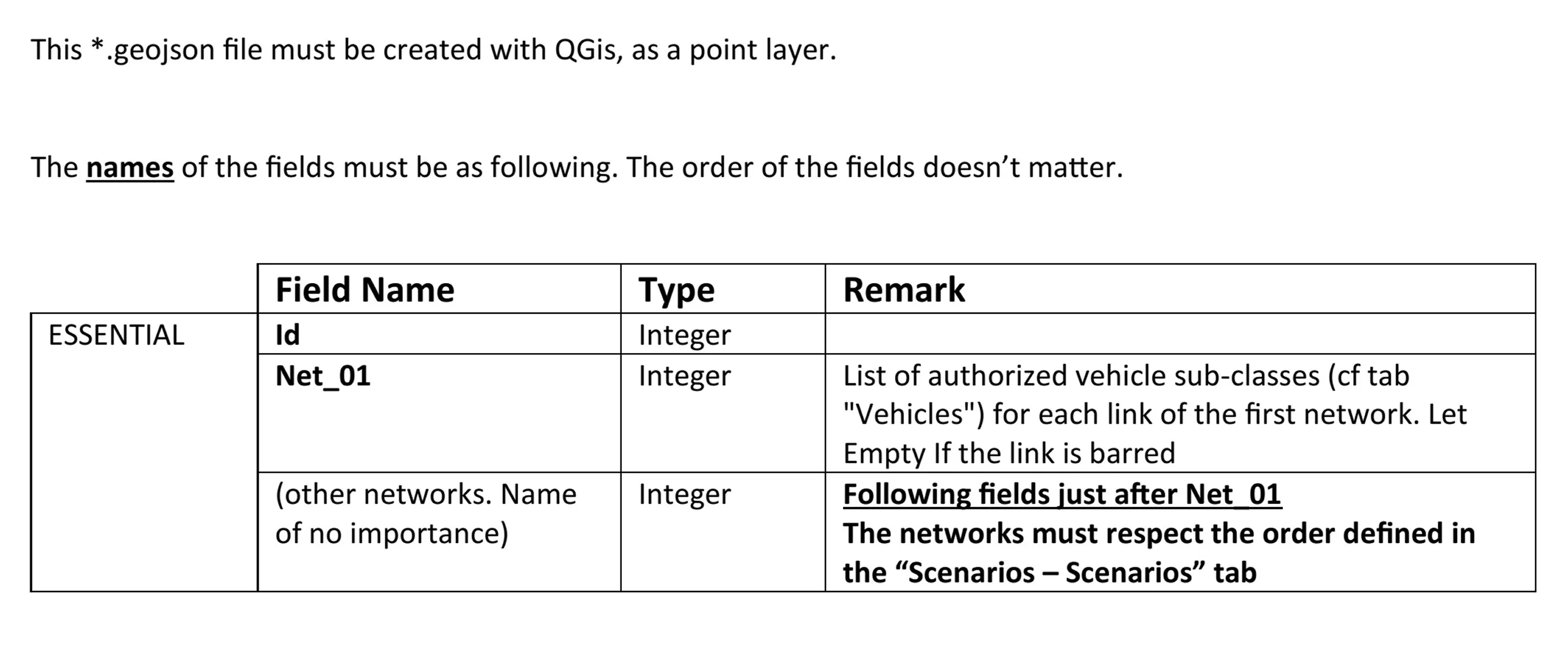

Parkings file (point QGis layer)

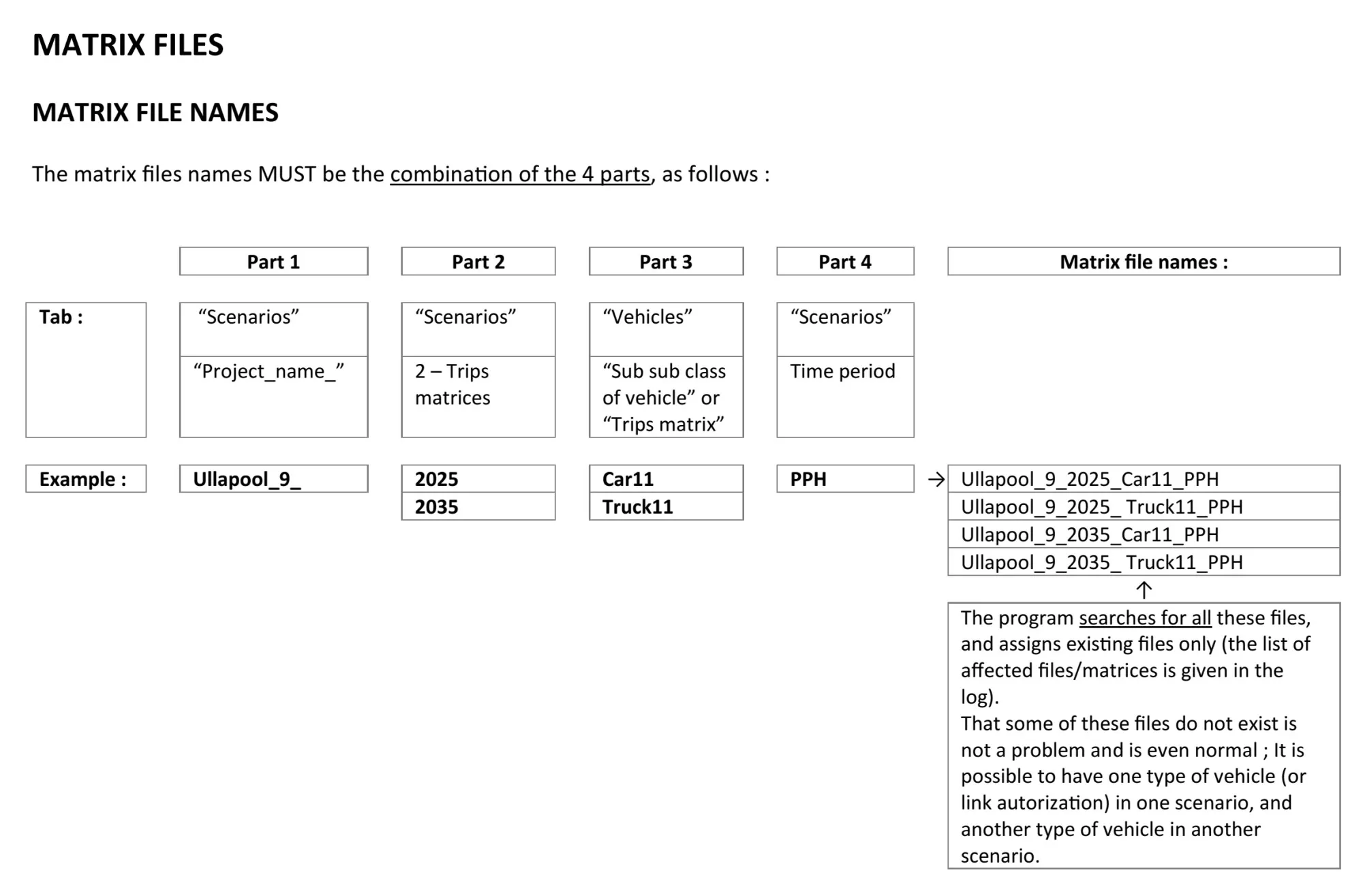

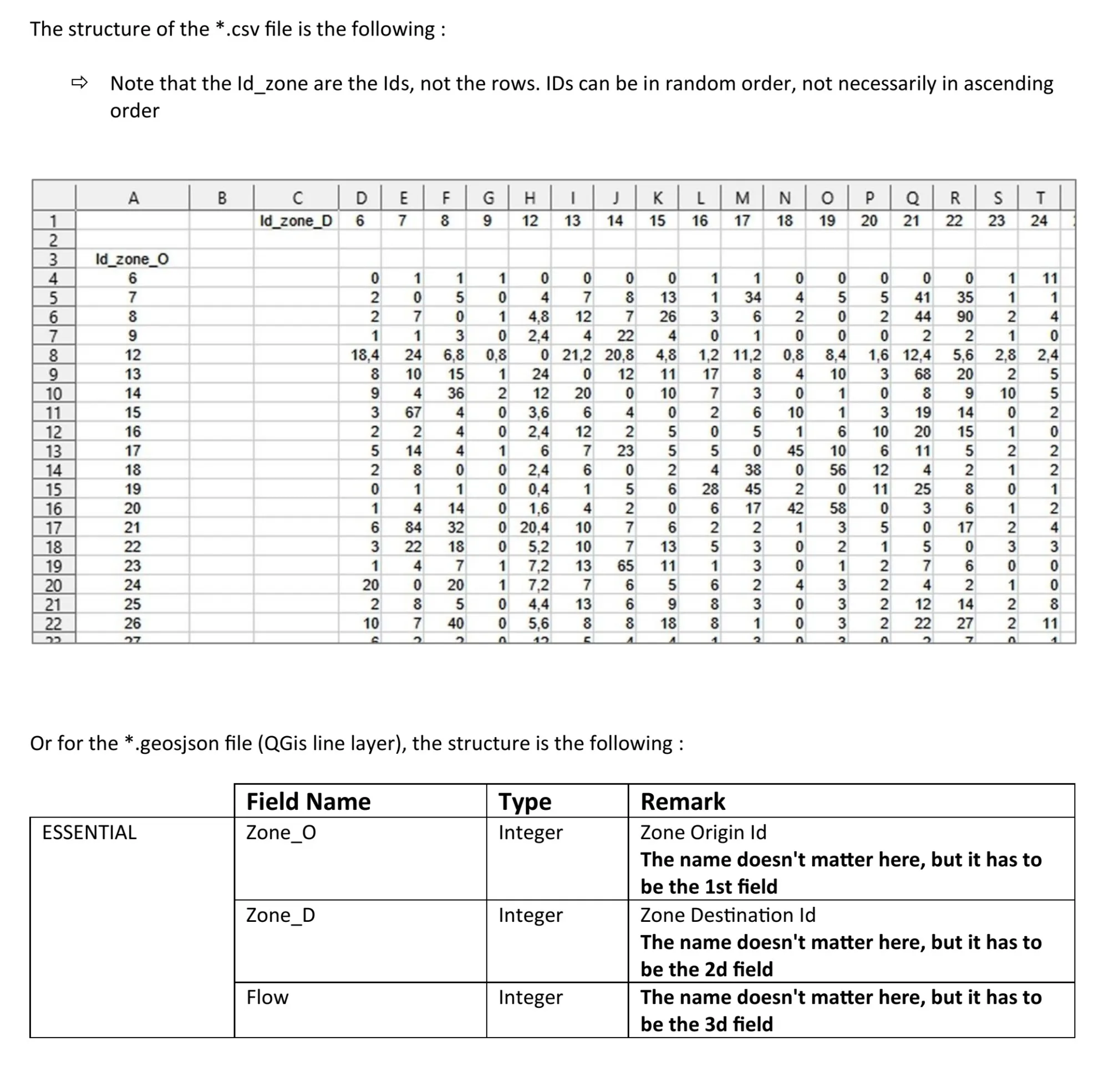

Matrix file
